$48,147.99

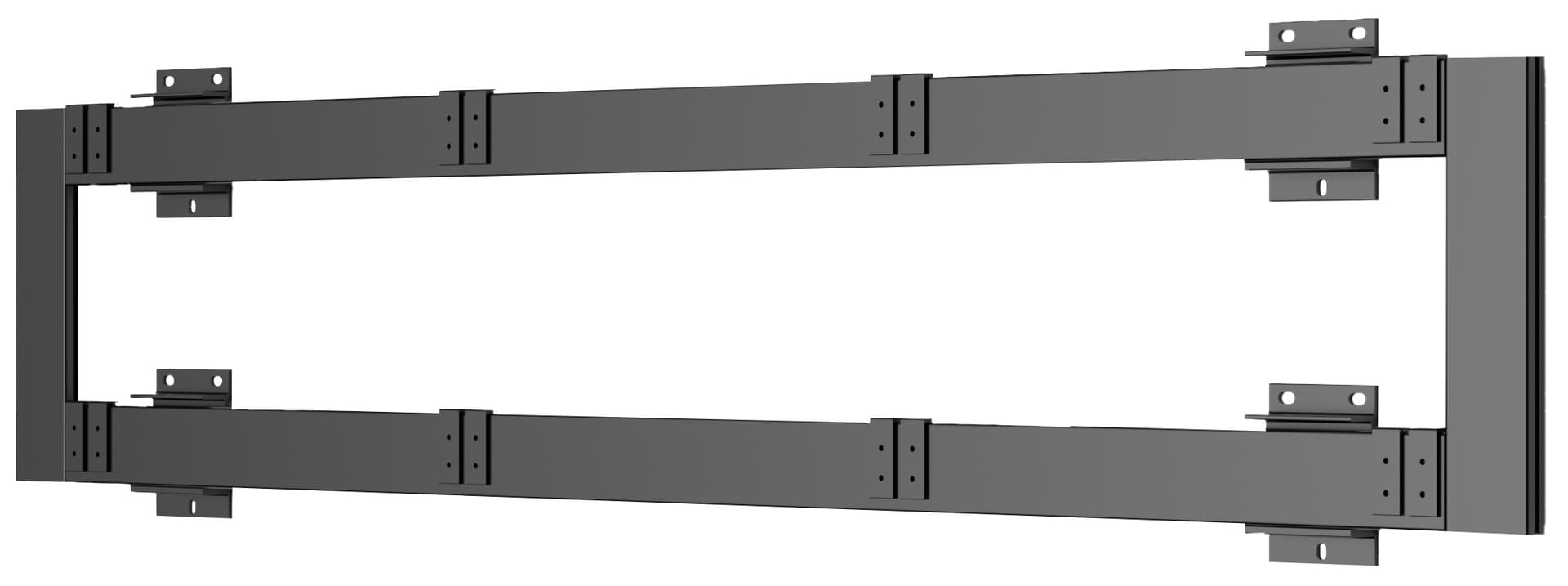

Includes:dvLED COB Modules, Wall Mount, Intelligent Remote Control, NovaStar Controller (TU20-Pro Input/Output Interface), Power Cable Connectors, dvLED Cable Connectors, 20 Spare Replacement Modules
- 1.9mm Pixel Pitch
- 163" LED Video Wall with 1080p Resolution
- ViPlex Express and ViPlex Handy App for Simple Content Updates
Installation Service Available
Works Well With
Direct View LED Video Wall with Flip Chip COB LED Panels and Vibrant True-to-Life Colors

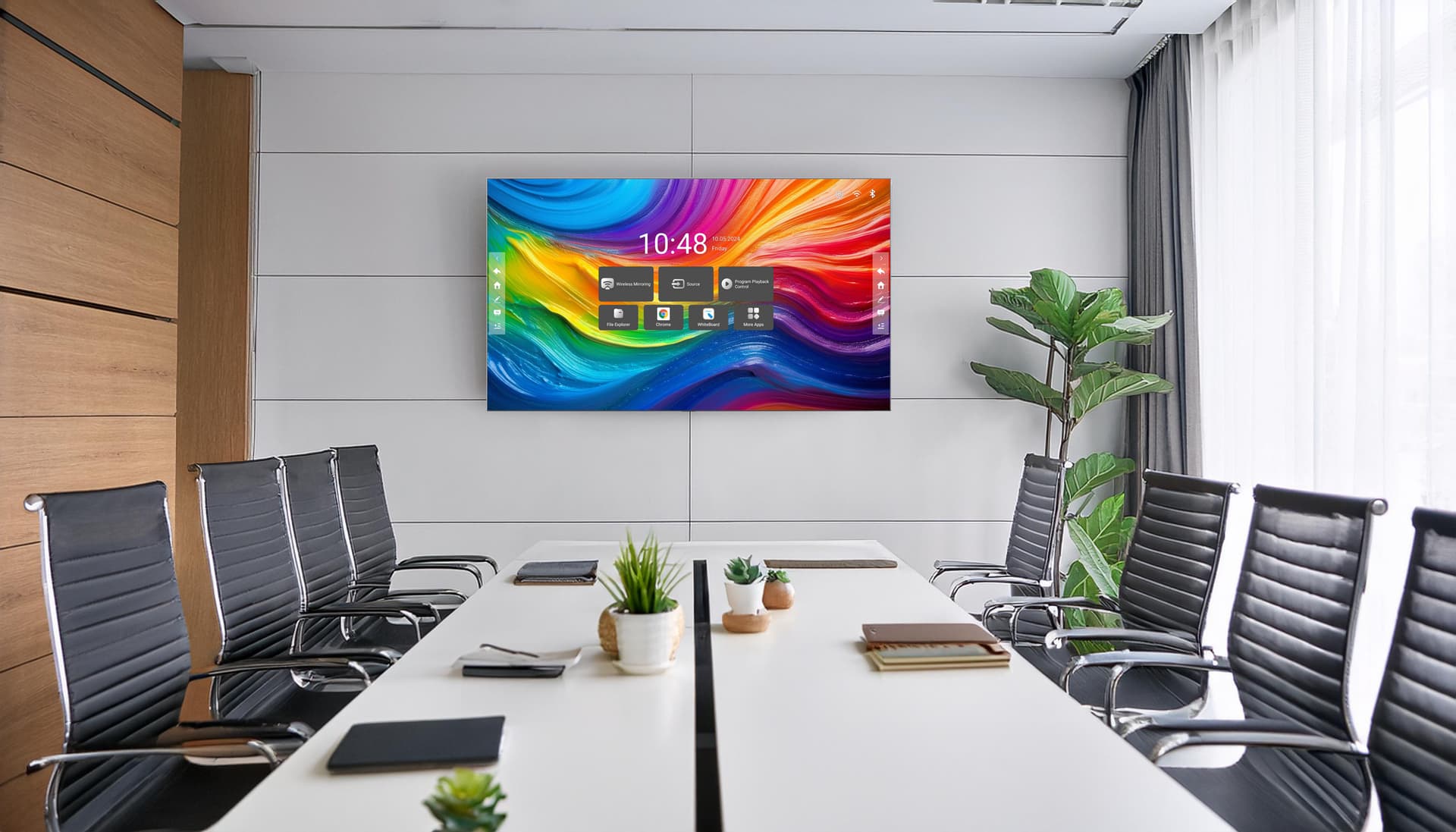

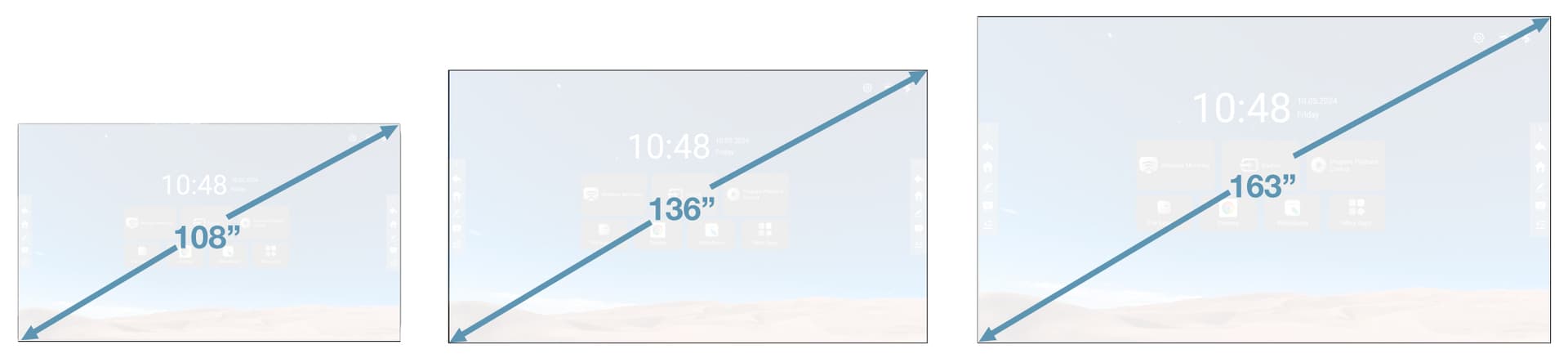

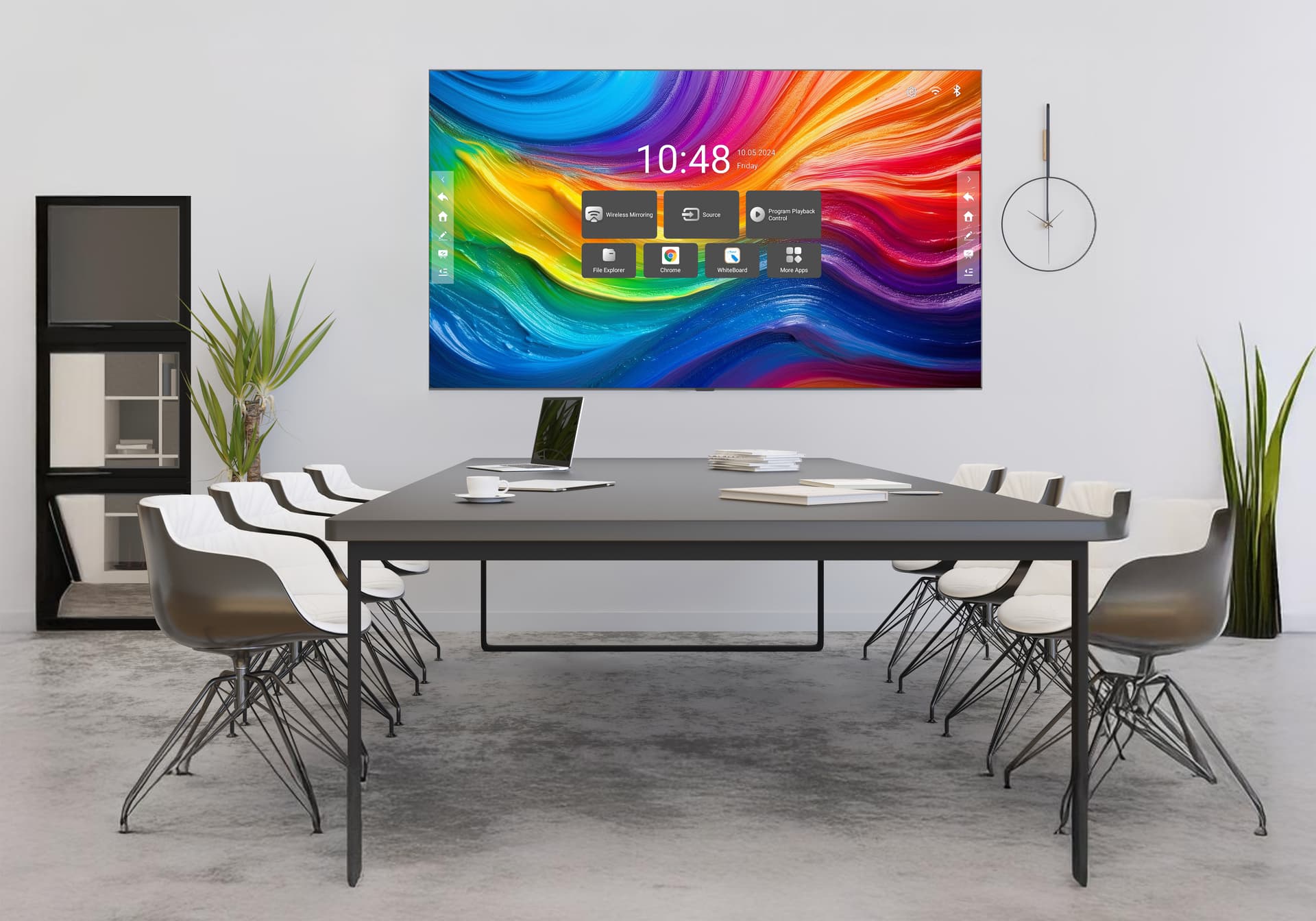

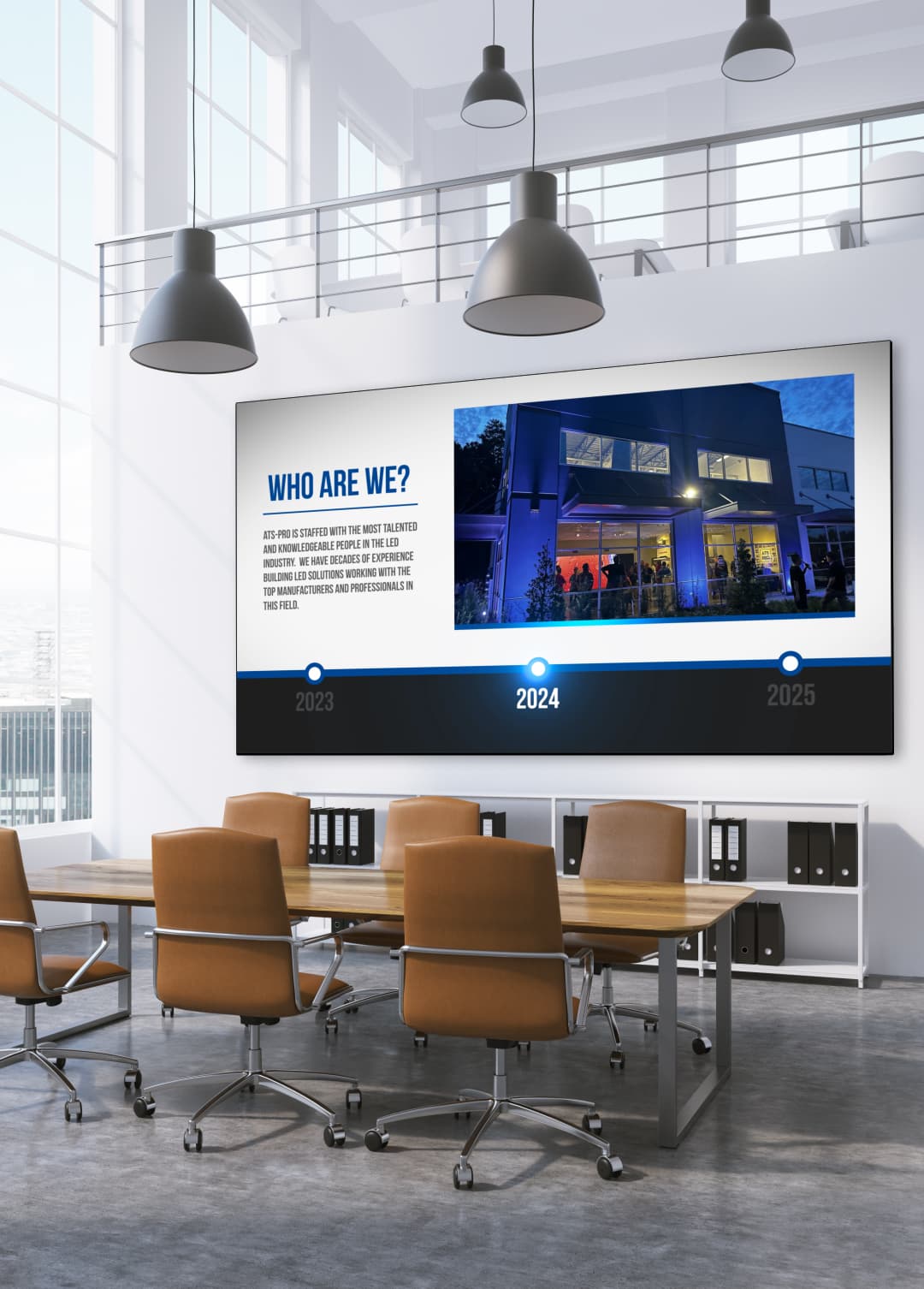

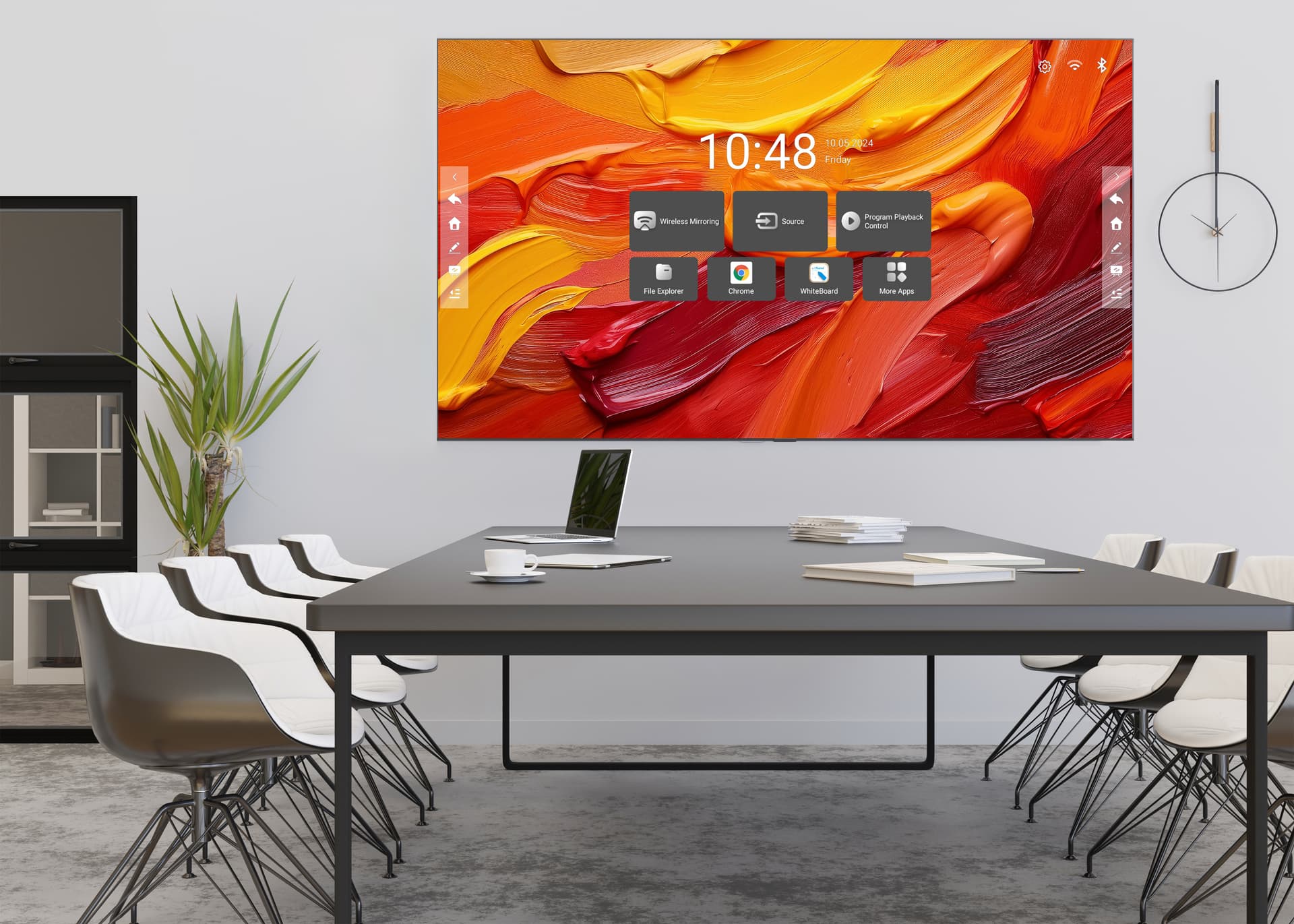

Ready to transform your space with unforgettable visuals? Our direct view LED video wall in 108", 136", and 163" screen sizes are designed to meet the demands of modern commercial environments. Whether you’re creating an immersive experience in education settings, delivering high-impact presentations in corporate offices, or grabbing attention at trade shows and conference centers, these dvLED displays deliver unparalleled performance. With pixel pitches optimized for each size—1.5mm for the 108", 1.8mm for the 136", and 2.5mm for the 163"—you’ll enjoy vibrant visuals tailored to any viewing distance. Available in wall-mounted or floor-standing configurations, these digital solutions seamlessly integrate into any professional space. Built for versatility and durability, these direct view LED video walls are perfect for broadcasting digital signage, showcasing multimedia content in lobbies, or enhancing collaboration in large meeting rooms. Equipped with Flip Chip COB panels for high efficiency and easy installation, their sleek design complements any décor while their vibrant color reproduction ensures every detail shines. These displays offer a long-lasting, impactful solution for businesses looking to stand out and captivate their audiences. Upgrade your commercial space today with a cutting-edge direct view LED video wall that redefines visual communication.
Includes:dvLED COB Modules, Wall Mount, Intelligent Remote Control, NovaStar Controller (TU20-Pro Input/Output Interface), Power Cable Connectors, dvLED Cable Connectors, 20 Spare Replacement Modules
- 1.9mm Pixel Pitch
- 163" LED Video Wall with 1080p Resolution
- ViPlex Express and ViPlex Handy App for Simple Content Updates

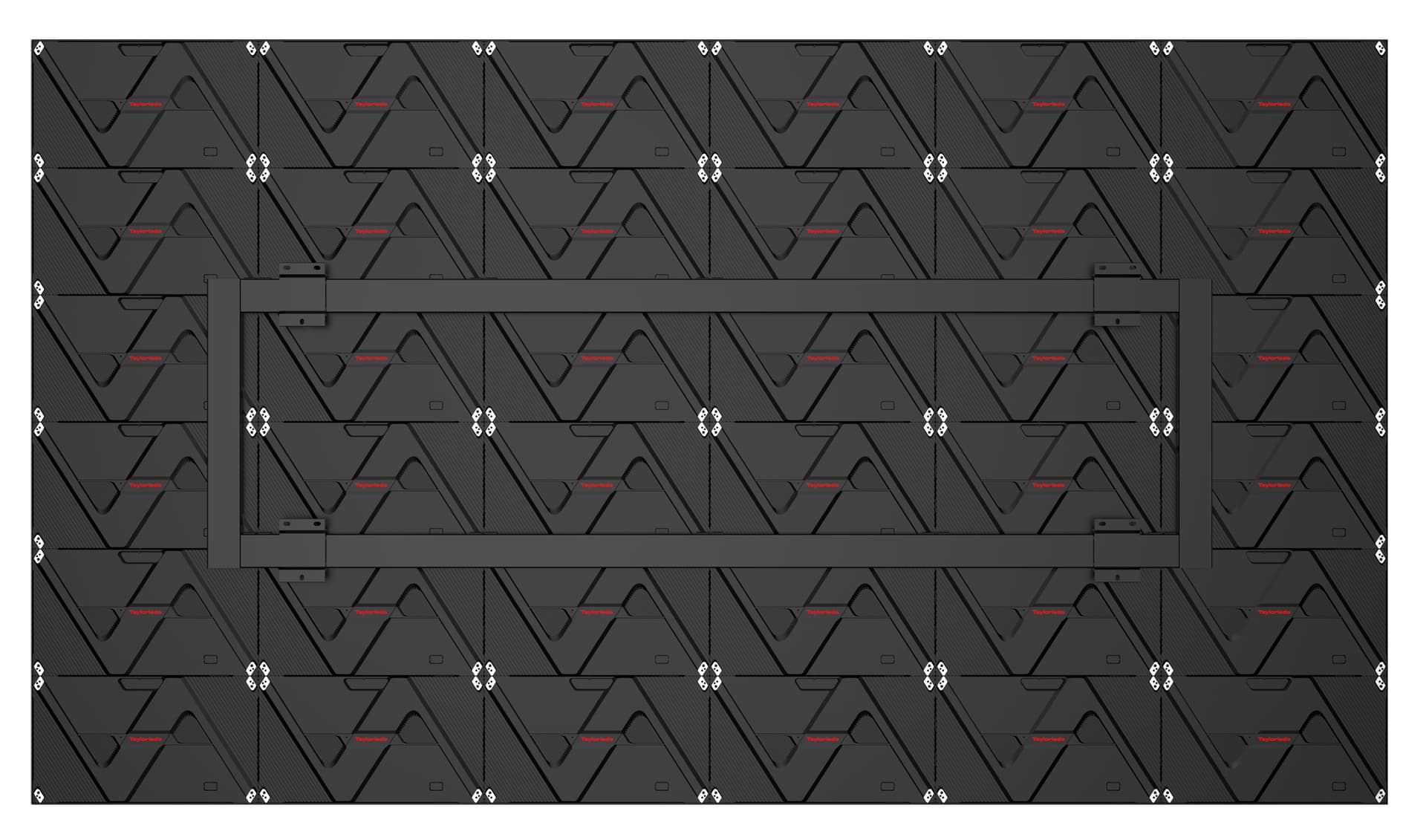

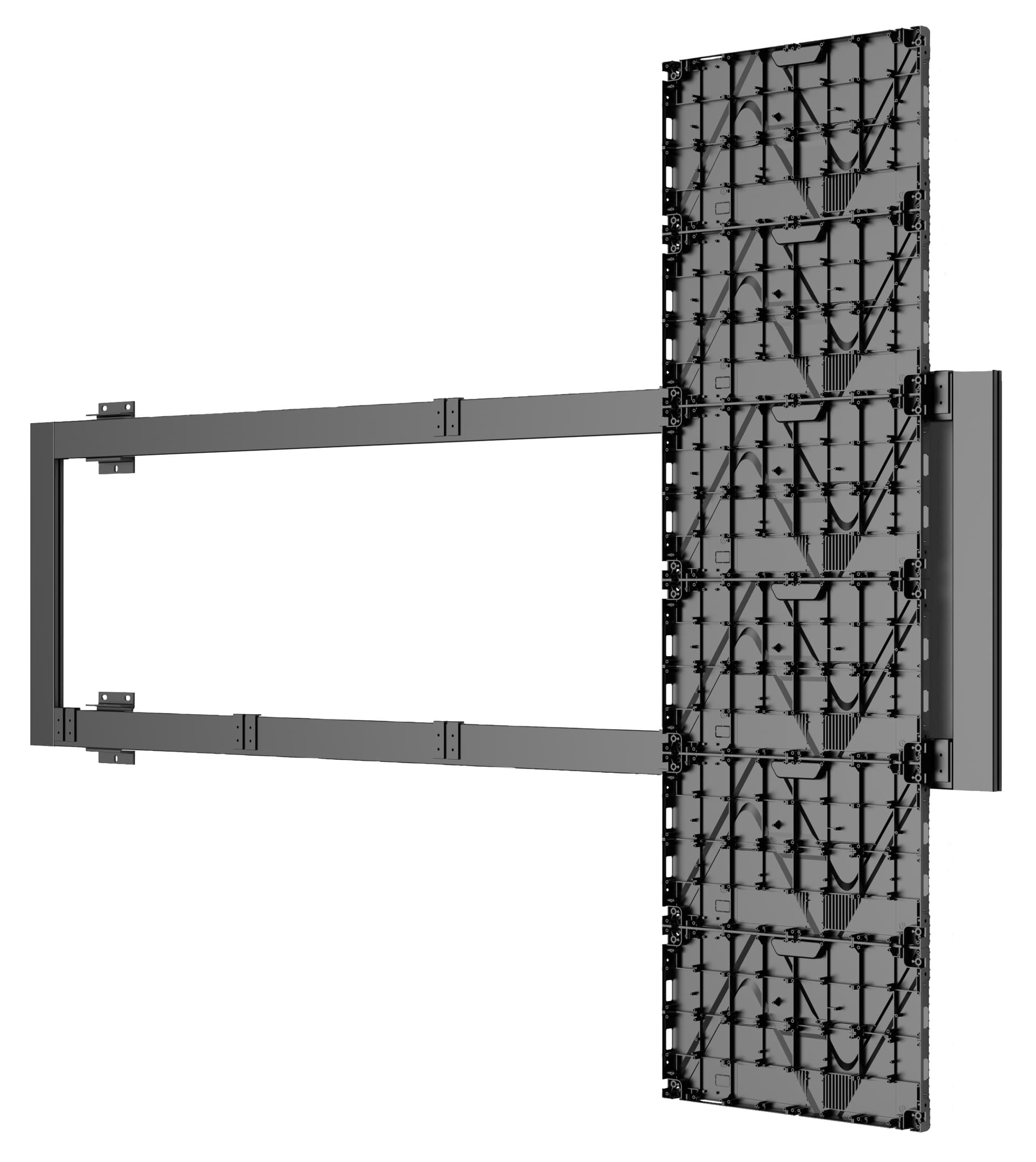

- Wall Mounted Placement for a More Permanent Option
- Flip Chip COB LED Panels for Higher Light Efficiency

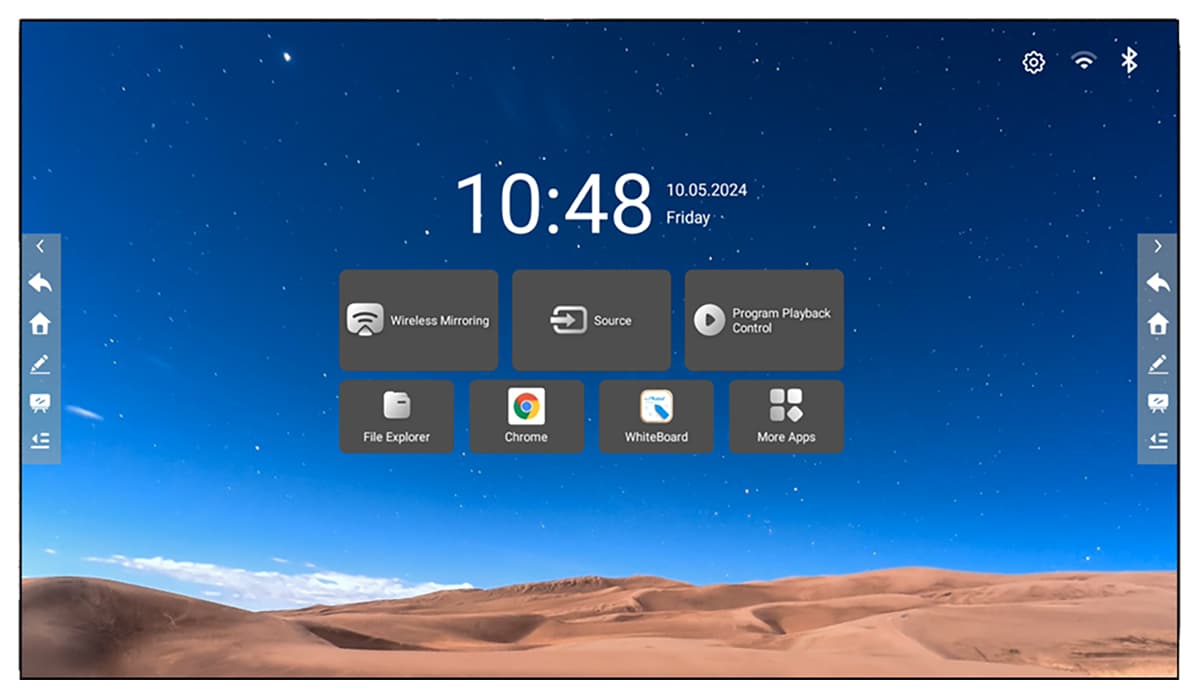

- Android 11 and NovaStar Operating System for Digital Signage
- Supports Image, Video, and Audio Files
- WiFi and Bluetooth Capabilities
- Up to 100,000 hr. Lifespan
- 2 Year Limited Warranty
- Indoor Use Only
- 1.9mm Pixel Pitch
- 163" LED Video Wall with 1080p Resolution
- Flip Chip COB LED Panels
- Android 11 and NovaStar Operating System
- 2 Year Limited Warranty
- Indoor Use Only
Only available for shipping within the United States.
This item is not eligible for return. Please contact us if you have any questions.
| SKU | XW163BVB18 |
|---|---|
| Viewable Width x Height | 132.8" x 72.6" |
| Material | Aluminum |

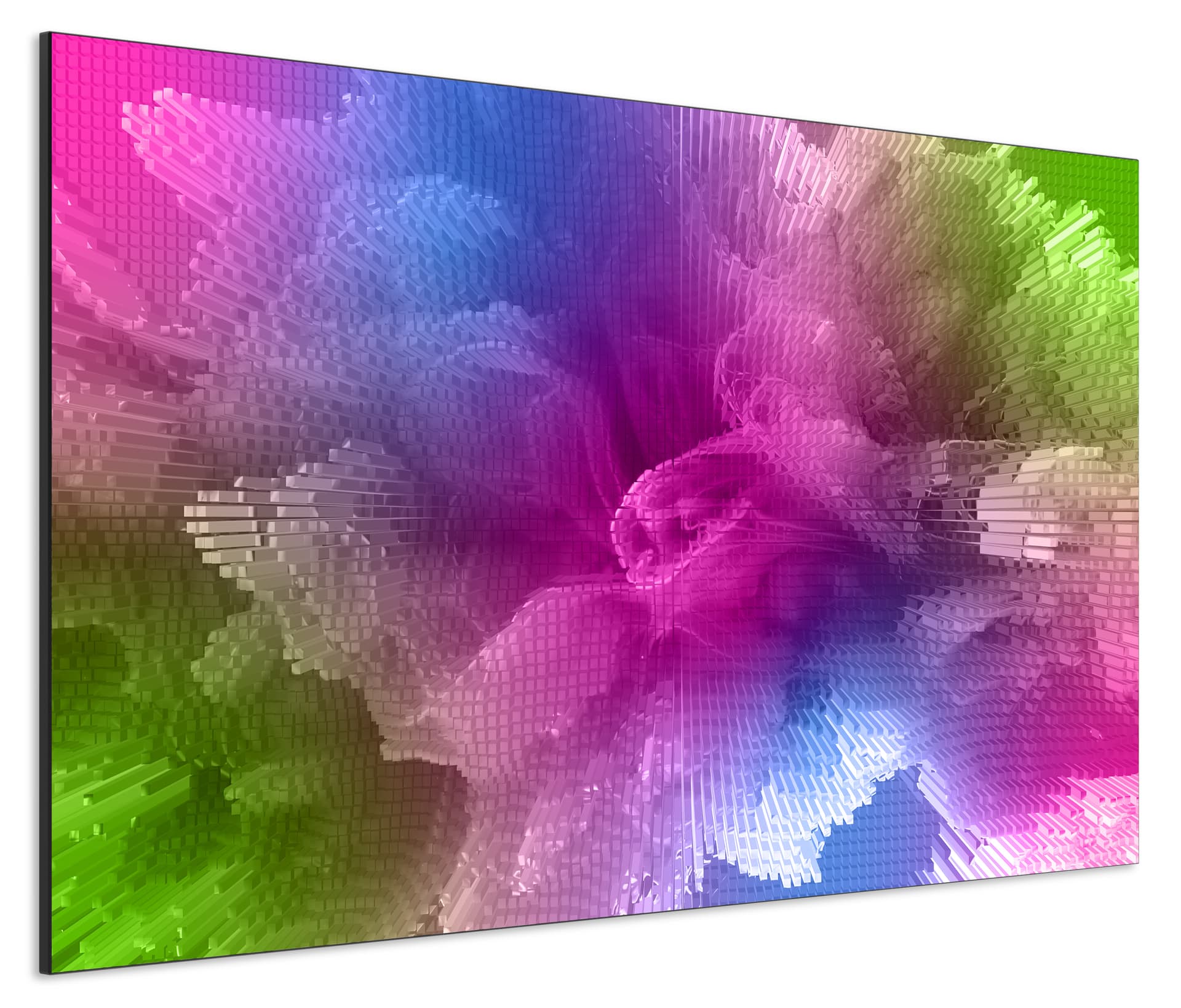

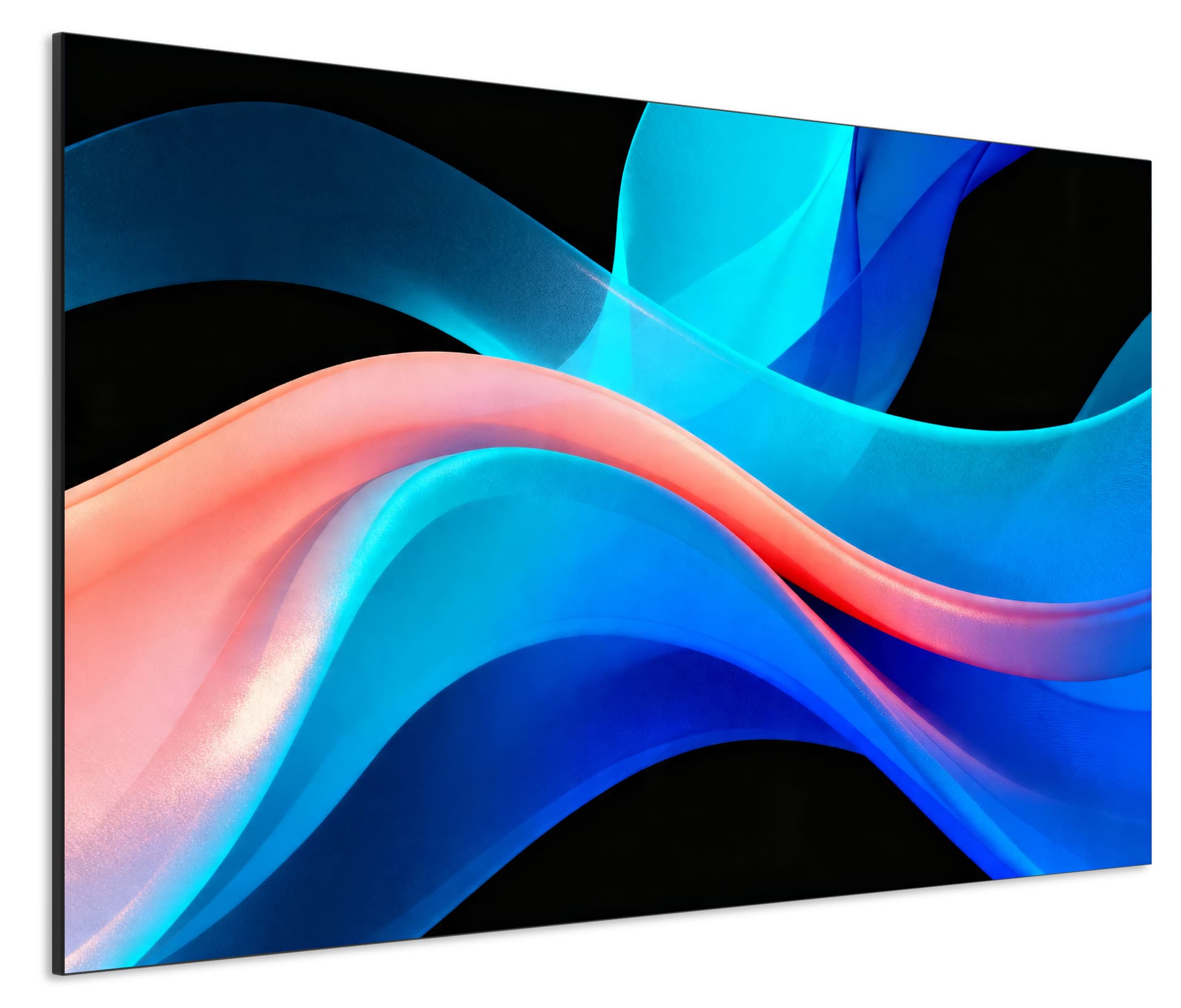

| Orientation | Portrait, Landscape |
| Power Cord Length | 118.1" |
| IP Rating | IP40 |
| Screen Size | 163" |
| Backlight Type | LED |
| Refresh Rate | 7680Hz |
| Supported Photo Files | BMP, PNG, GIF, JPG, WEBP |
| Internal Storage | 128GB |
| Warranty | 2 Year Limited Warranty |
| Working Temp (°F) - Min, Max | 14-104° |
| Operating System | NovaStar on Android, Android 13 |
| Software Package | ViPlex Express, Viplex Handy App |
| USB 2.0 | Three |
| Contrast Ratio | 15000:1 |
| Input Voltage | AC 100-240 V / 60 Hz |
| Antenna | External |
| HDMI Input | 2 |
| Chromaticness | 120% |
| Storage Humidity | 10~85% |

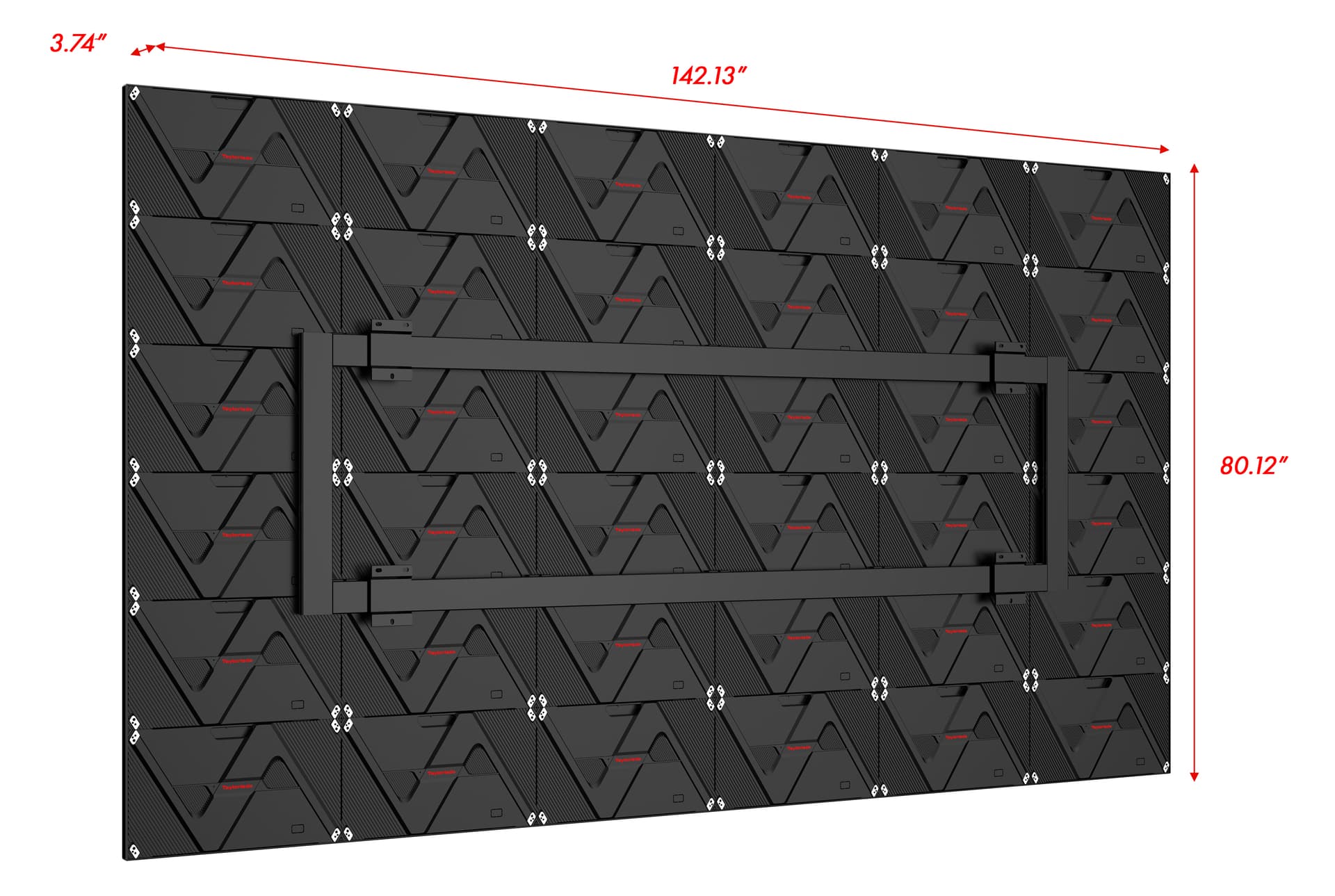

| Overall Width x Height x Depth | 142.1" x 80.1" x 3.7" |
|---|---|
| Weight | 389.8lbs |
| Placement Type | Wall Mounted |
| Color | Black |
| Secondary Color | Silver |
| Regulatory & Safety Listings | ETL Certified , FCC |
| Brightness | 1000.0 nits |
| Resolution | 1920x1080 |
| Power Consumption | 325.0W |
| Supported Video Files | AVI, MP4, MKV, FLV, WMV, MPG, 3GP, MOV, VOB, TS, ASF, WEBM |
| Aspect Ratio | 16:9 |
| Storage Temp (°F) - Min, Max | -40-140° |
| Audio Output | 1 x 3.5mm |
| Viewing Angle | 160°/160° |
| Response Time | 2ms |
| Ethernet LAN (RJ45) | Two |
| RAM | 8GB |
| Pixel Pitch | 1.9mm |
| HDMI Output | 1 |
| Installation Services Offered? | Yes |
| Operating Humidity | 10-80% |
| Maximum Operating Time (Days/Hours) | 7 Days / 24 Hours |
