TV Wall Mount with Articulating Arm Fits Monitors 23-42", Built-in Level - Black

TV Wall Bracket
  • TV Size Range: 23"-42"
  • Weight Capacity: 44 lbs.
  • Distance From Wall: 3" - 16-1/2" (fully extended)
  • VESA Compatible: 75x75; 100x100; 200x100; 200x200
  • Tilt: + / - 15°
  • Rotation: 360°
  • Color: Black


Notify Me When In Stock
$48.23 / Each (USD)

This product is temporarily out of stock and is currently unavailable for purchase.

Please check back regularly as we anticipate new stock in the future.

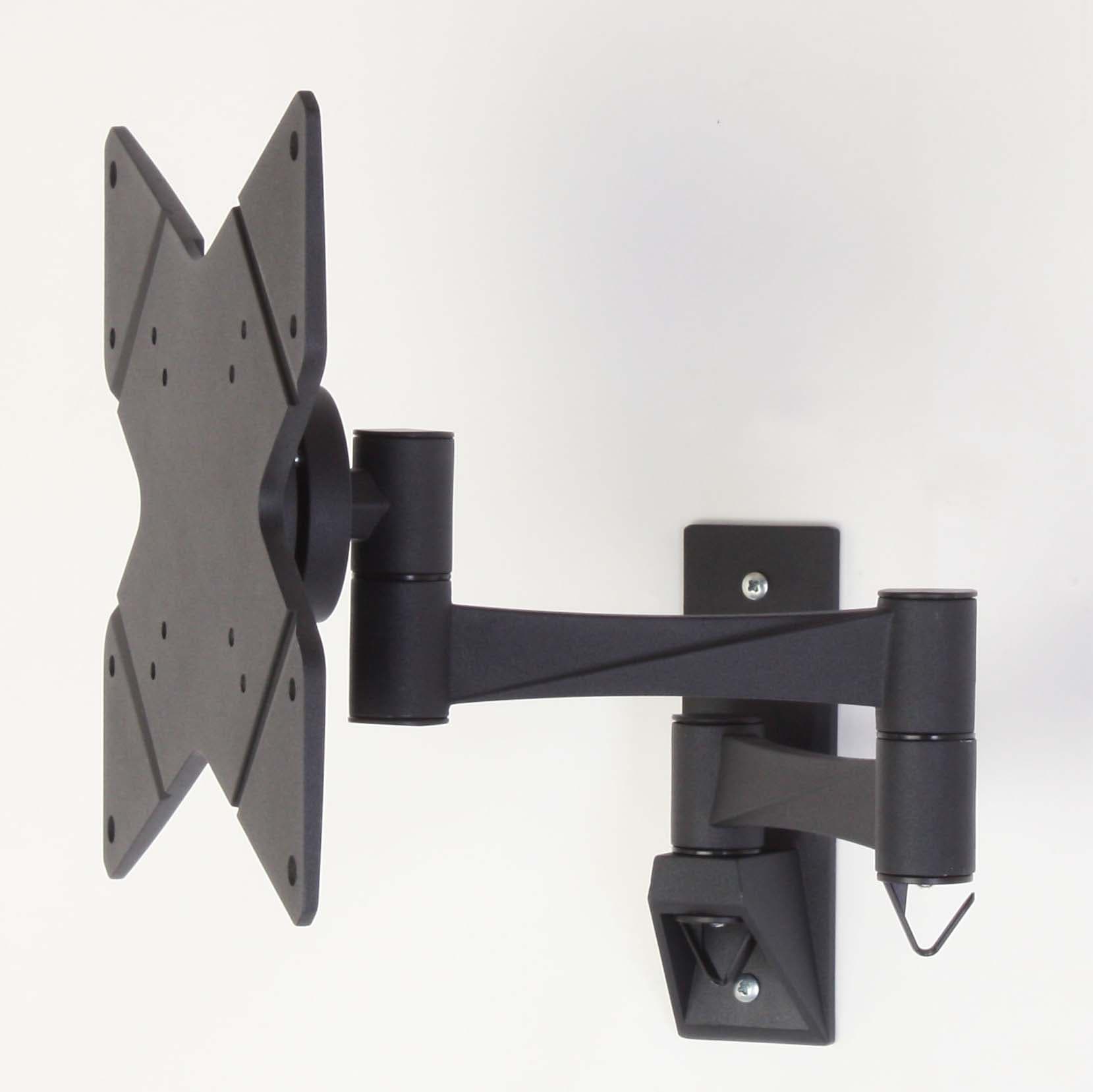

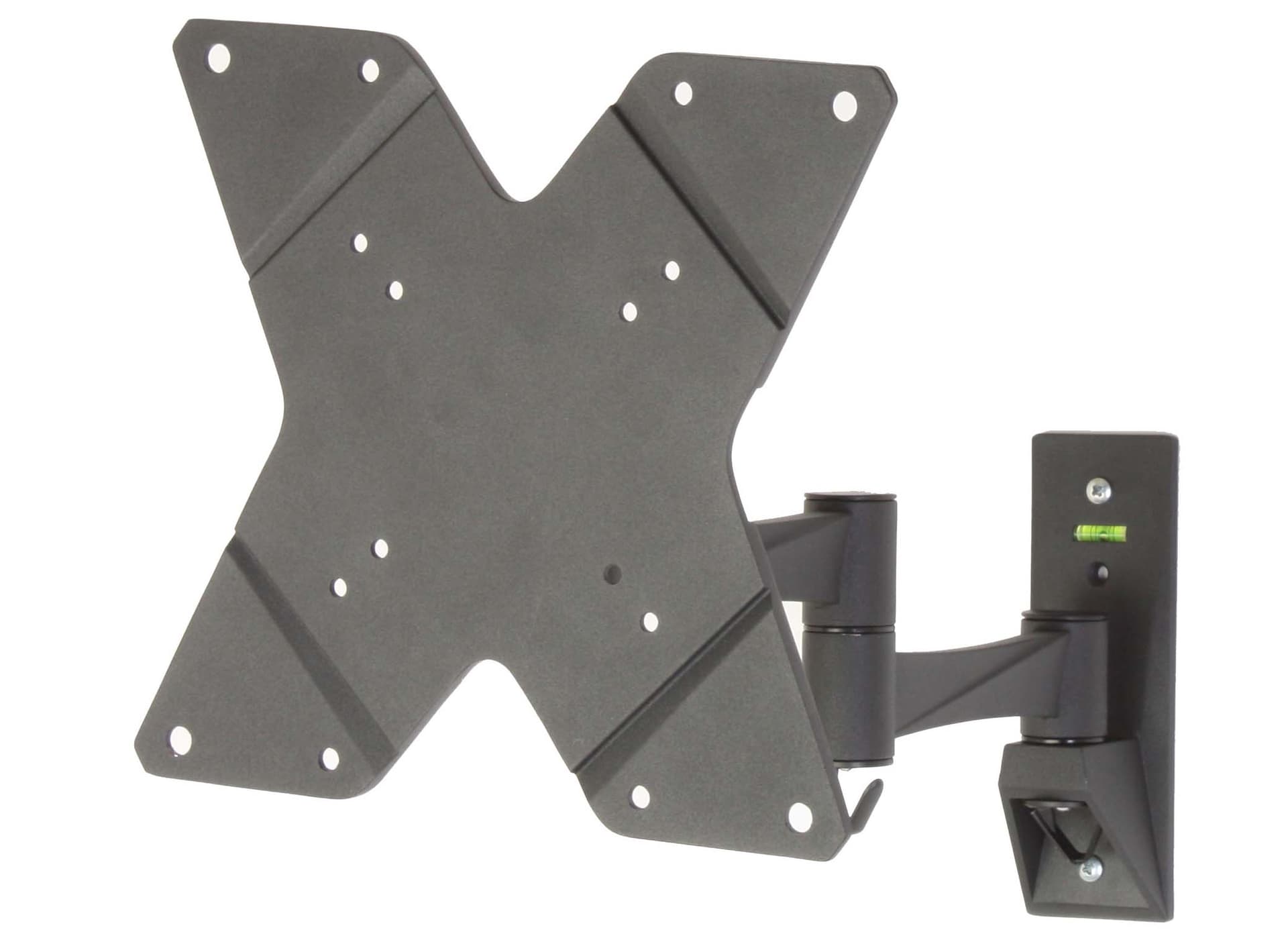

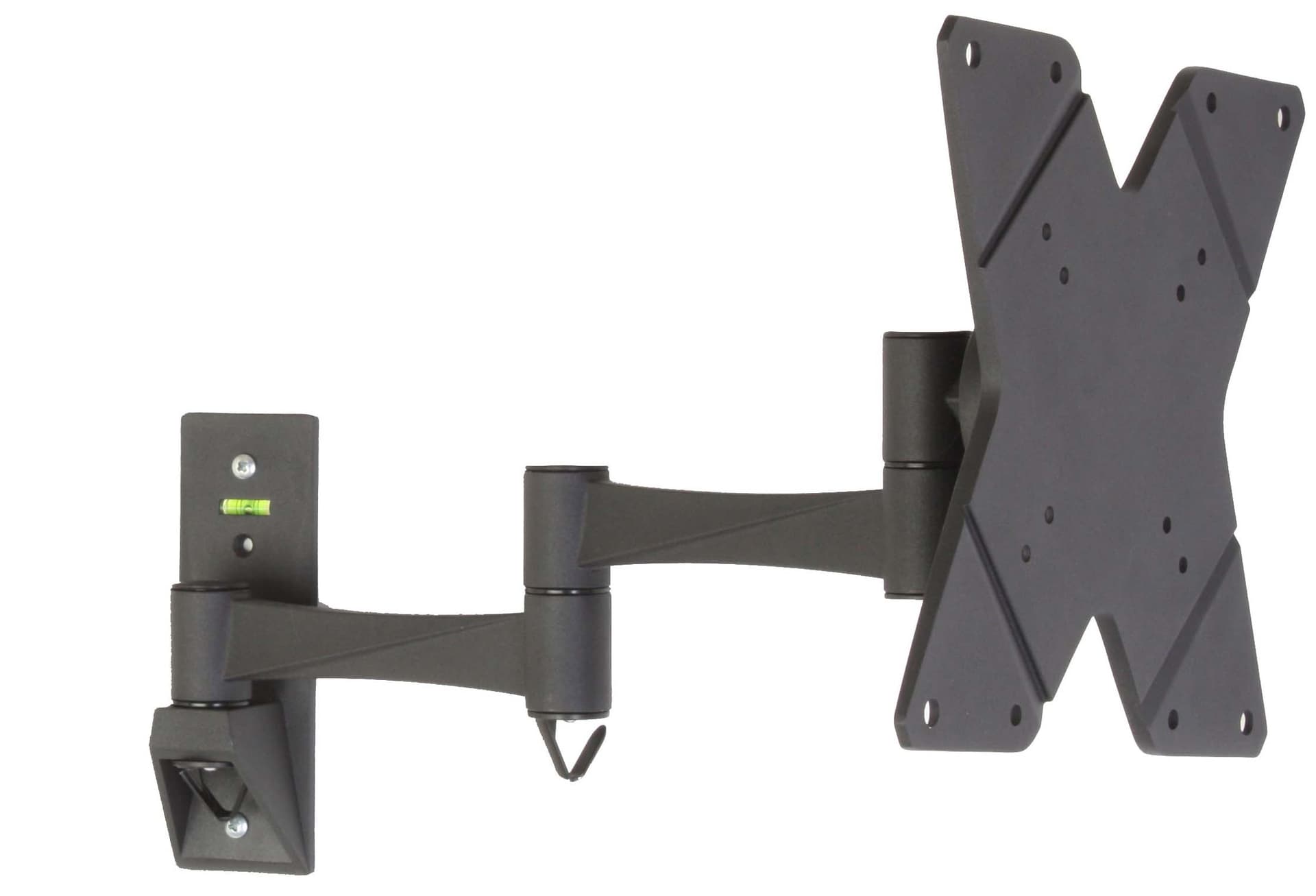

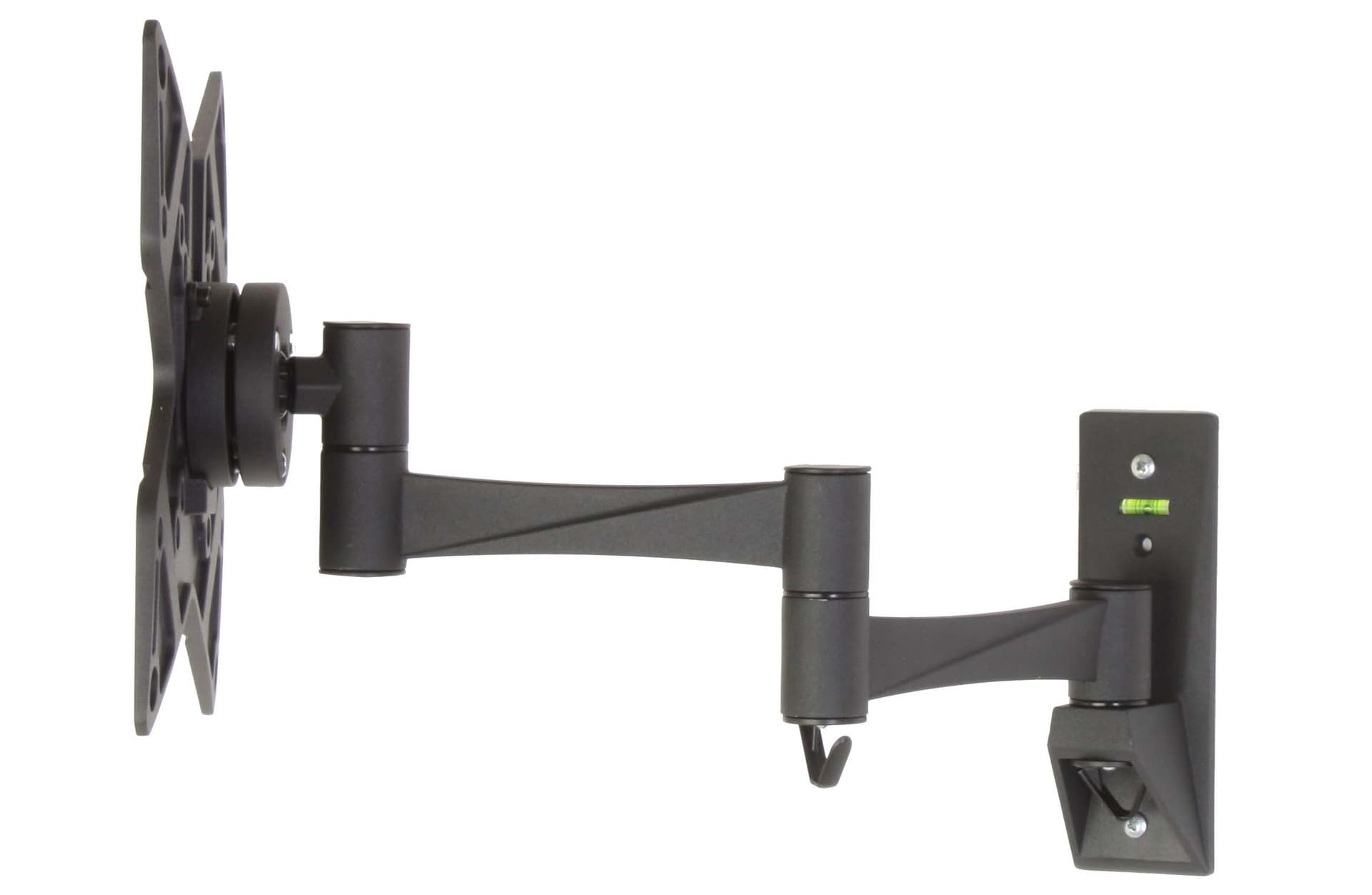

TV Wall Bracket That Has A Double-Jointed Articulating Arm

TV wall bracketThis black TV wall bracket provides fast & simple mounting. The flat screen support brings a television up to a comfortable viewing area. This TV wall bracket that features a double-articulating arm, also known as a plasma mount, complies with the internationally recognized VESA standards, offering compatibility up to 200mm x 200mm. Each display has many useful features integrated into the design, making them a great value, even when purchasing in bulk! The aluminum TV wall bracket is an effective and affordable choice for residential use in family rooms, bedrooms or even kitchens. Hotels, office buildings and conference centers will also find the LCD or flat screen mounts to be a useful addition.

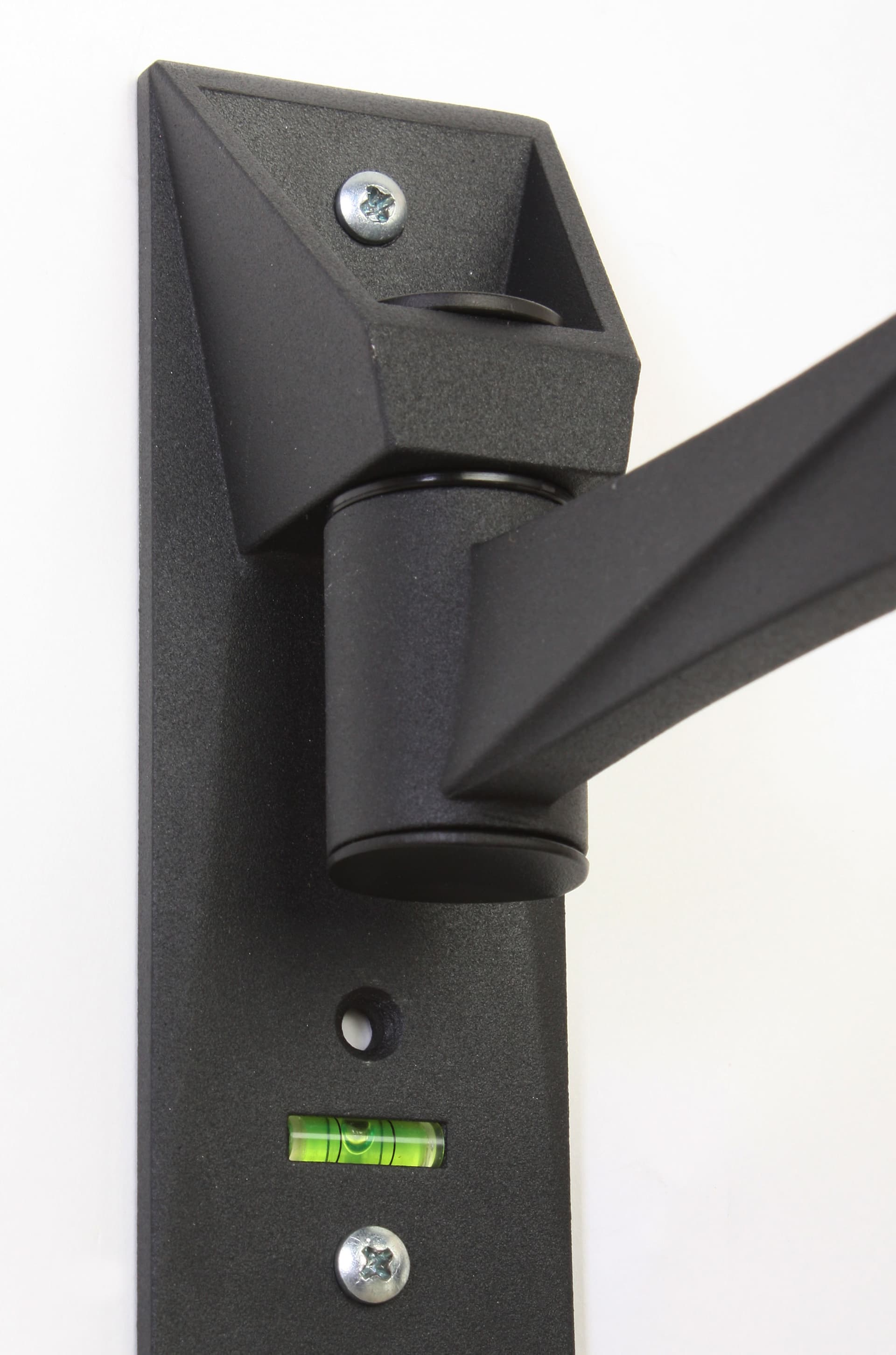

This plasma display, TV wall bracket that rotates holds televisions ranging in size from 23"-42" weighing less than 44 lbs. The mounts feature a double-articulating arm, allowing it to extend anywhere between 3" and 16-1/2". Additional features on this TV wall bracket include titling capabilities (up or down 15° in each direction), side-to-side panning, and full, 360° rotation. All movements can be performed by hand, without additional tools! Two small clips can be found on the underside of the TV wall bracket, to help guide wires back away from the television. This plasma display includes all necessary hardware for both surface mounting, and securing a television to the mount (although some TVs may require specific screws that can be found at any local hardware store). A bubble level is built into the TV wall bracket mounting plate for ease of installation.


SKU VS180BK001
GTIN 840844110332
Overall Width x Height 9.1" x 8.9"
Depth Range Min. x Max. 3.0" x 16.5"
Weight 3.5lbs
Material Aluminum
Placement Type Wall Mounted
Orientation Portrait, Landscape
Features Cable Management
Color Black
Mounting Bracket Width x Height x Depth 2.1" x 6.6" x 2.1"
VESA Size 75x75, 100x100, 200x100, 200x200
Min Monitor Size 23"
Max Monitor Size 42"
Bracket Type Tilting, Rotating, Articulating, Panning
Max Monitor Weight 44.0lbs

Ordering Information

Out Of Stock
We expect to have more in stock within 60-90 days.

Resources: Manuals, Videos, & Templates

Installation Instructions

Filename: vs180bk001.pdf (5.30 MB)


Browse reviews from customers who have already purchased this product.

Overall 4.41 out of 5 | 17 reviews

Customer Photos & Videos

Customer Photo 1Customer Photo 2Customer Photo 3

5 / 5
By Mike Powers on November 22, 2020 Verified Purchase
I needed a mount that would not only move in all the directions normally associated with putting your TV on a wall, but also, because I was mounting in an RV and space was a serious issue, I needed one that would allow full, 360-degree rotation of the TV itself. I searched for several days, coming across many adverts that promised "full-motion", but when I'd do a deep-dive on their products, they didn't do what I needed them to do. After calling Displays2Go at their customer support line, the VS180BK001 proved to be exactly what I was looking for. It's REAL "full-motion" allowed to fit a much bigger TV in my space than anyone thought possible. It also came with directions for mounting that made putting the mount on the wall a breeze. I'm sure the company doesn't recommend this, but the way the TV attached to the mount itself was so easy that I was able to mount a 40-inch TV by myself. I highly recommend this product to anyone trying to have true full-motion movement in their mounts.
Comments (1)
We are thrilled to hear that you are happy with your order, Mike. Thank you for leaving us a review and for submitting your picture.

Posted 5 months ago by Displays2go

4 / 5
Nice for the price!
By Pat McGroyne on September 24, 2018 Verified Purchase
I have now purchased two of these. One for work, one for home. Could use a little more tilt capability, but overall, it works great for both installations and was a great value. Lots of hardware included, so no need for a separate trip to the hardware store!
Comments (1)
Thanks for the awesome feedback, Pat! We will pass on your note about the tilt adjustments to our product team for review. We appreciate your insight immensely!

Posted 2 years ago by Displays2go

4 / 5
Works well
By Robin McGroyne on April 17, 2018 Verified Purchase
Fairly straightforward design. Functions well with a good amount of adjustment. Appearance is good, even though it is hidden. Price is insanely good. Comes with all the necessary hardware for a straight stud mount. I would prefer some sort of thumbscrew or other lever type adjustment of the tilt feature, but that really only needs to be done one time and then it should be fine virtually forever.
Comments (1)
Hi Robin, Thank you so much for the thorough feedback! We're going to share with our product development team to review. We hope you shop with us again soon!

Posted 3 years ago by Displays2go

5 / 5
Sweeeeeeeeet !!!!!!
By David McClellan on October 10, 2017 Verified Purchase
Received this wall mount for my 40 inch TV in my bedroom. I was very skeptical when I unpacked it, it seemed small and light for holding up and maneuvering my set. The mount goes up easy and I could not be more satisfied, I can lay in bed, swing out the TV that looks like a picture on my wall and view easally from any angle. This is the best, lightest mount I’ve found so far at an incredible price. Shipping was fast and I could not be more pleased with this company and their product. Just a sweeeeeeet expieriance all around.

5 / 5
Easy to mount
By Eric W. on August 14, 2017 Verified Purchase
I had the wall mount up in about 2 minutes. I had a stud to mount the unit to already located. I pre-drilled the holes and bolted it to the wall. I like the black anodized look and the cable clips work well. I can move the display around to suit my needs. When needed I will buy another one.

View All 17 Reviews For VS180BK001
