32" - 60" Swing Away TV Mount

IN STOCK

Order before 3PM ET and this item will ship today.
$165.99 / Each (USD)
  • Fits Monitors 32” – 60”
  • Articulating Arm
  • Tilting & Rotating Bracket
  • Integrated Cable Management
  • VESA Compatible 200x200 – 600x400
Greenprint Product

Description

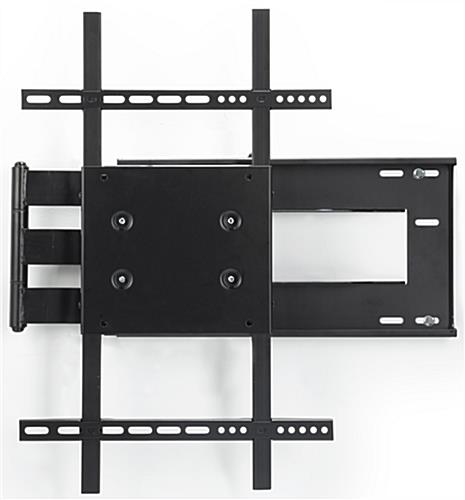

Swing Away TV Mount with Rotating Bracket

This swing away TV mount affixes to walls, and holds screens up to 60” on a full motion bracket. Compatible with VESA sizes between 200x200 and 600x400, this LCD display is an adaptable and versatile solution for industrial use. Tilt the bracket of the wall TV mount up or down, and extend the arm up to 26” from the partition for the perfect viewing angle. Easily rotate the screen weighing up to 150 lbs. between landscape and portrait orientations, depending on your desired display. The full motion TV mount is durably built of steel for long lasting use. All hardware for fixing to walls is included with the purchase.

Specifications

SKU HVAWM3260S
GTIN 840844125244
Overall Width x Height 26.0" x 15.0"
Depth Range Min. x Max. 3.5" x 26.0"
Weight 21.5lbs
Material Steel
Placement Type Wall Mounted
Orientation Portrait, Landscape
Color Black
Eco Friendly Features Displays2go Greenprint Product
VESA Size 200x200, 400x400, 600x400
Min Monitor Size 32"
Max Monitor Size 60"
Max Distance from Wall 26.0"
Bracket Type Tilting, Rotating, Articulating, Panning
Max Monitor Weight 150.0lbs

Ordering Information

In Stock
Order by 3PM Eastern Time US for same day shipping.

Resources: Manuals, Videos, & Templates

Assembly Instructions

Filename: hvawm3260s_inst.pdf (1.98 MB)

Reviews

Browse reviews from customers who have already purchased this product.

Overall 4.1 out of 5 | 7 Ratings

Write a Review

Customer Photos & Videos

Customer Photo 1Customer Photo 2Customer Photo 3
5 / 5
Good Solution For Existing TV Cabinet
By GG on April 17, 2022 Verified Purchase
I live in an older home with a built-in for the old tube TV's. In order for a flat screen TV to be able to be put away in my cabinet it had to turn to portrait. This mount has worked great and I have had it for over a year. Seems solid. A word of caution on Samsung TV's (or at least my 56") for this mount. The mounting holes are centered on the TV in landscape. But in portrait these holes are toward the top of the TV. This means the weight of the TV is heavier toward the bottom and makes it difficult to stay plumb in portrait mode. This is fine for me as I only need it in portrait to put the TV away.
Comments (1)
We're thrilled this TV mount worked out so well for this! Thanks so much for taking the time to leave an awesome review and for sharing photos, GG. We truly appreciate the feedback.

Posted one year ago by Displays2go

3 / 5
Portrait/Landscape Rotation
By Steven B. on February 17, 2022 Verified Purchase
I received the mount a couple of days ago and will install it in a client's cabinet in a few days. The reason for buying this mount was that it was the only one I could find that articulated, tilted and was able to rotate the 55" flat screen TV from landscape for viewing to portrait for storing in an existing cabinet, behind the finely crafted doors. The instructions clearly state that the rotation screws must be tightened after rotation. This is not acceptable to my client and lacking any alternative, I changed the attaching screws to bolts such that I could lock the bolt tightness adjustment with a jam nut from the back. Steel washers were added for the bearing surface to the rotating plate and lubricated with grease. I don't have a simple alternative plan at the moment. The unit was not lubricated in any fashion. Since many cycles of use were anticipated, I added Lubriplate to to the joints, which reduced the initial stiffness quite a bit.
Comments (1)
Thank you so much for the feedback, Steven! Please feel free to reach out to our customer care if you need any further assistance and we'll be happy to help!

Posted one year ago by Displays2go

5 / 5
Excellent hardware, great extension from wall
By Barbara Switzky on June 3, 2016 Verified Purchase
Bought this for a 40" Samsung because I wanted the most viewing angles possible for the TV. It stretches far enough away from the wall that I can have the TV facing 90 degrees to the wall as an option. Build feels sturdy and has given me zero issues so far. Very happy with product and highly recommend it. If you are using this mount, check your cabling and wire lengths. The unit has cable holders built in, but you need an extra foot or more of your cabling cabling than many other units at maximum extension.
4 / 5
Not wide enough for 24" studs
By Bruce on February 19, 2018 Verified Purchase
Good sturdy bracket, but wall bracket is only wide enough to span 16" OC studs. Ended up having to add metal bars to span 24" studs.
Comments (1)
Thanks for taking the time to send us feedback, Bruce! If we can ever be of any assistance with a product, please do not hesitate to reach out to us via phone, email, or chat. Thank you!

Posted 5 years ago by Displays2go

5 / 5
Just keep spinning
By Chad Siegel on September 10, 2019 Verified Purchase
This mount is everything that it is described to be. Easy to install, TV mounts fast and articulation and rotation work perfectly!
Comments (1)
We love this review! Thanks for the excellent feedback, Chad! Enjoy your new TV mount :)

Posted 3 years ago by Displays2go

View All 7 Ratings For HVAWM3260S
